1/24 4WD 4-Wheel Steering Crawler Off-Road Vehicle (with Outrunner Motor)
Product Description
- PVC body shell; PA+ fiber-reinforced roll cage and linkages; PA+ fiber-reinforced universal joint drive shafts; PA+ fiber-reinforced hex adapters.
- Controllable headlights and brake lights; full-metal gear train throughout the vehicle; high-brightness headlight assembly.
- The transmission supports switching between three modes—High Speed, Neutral, and Low Speed—utilizing a mechanical shifting mechanism that can be controlled remotely.

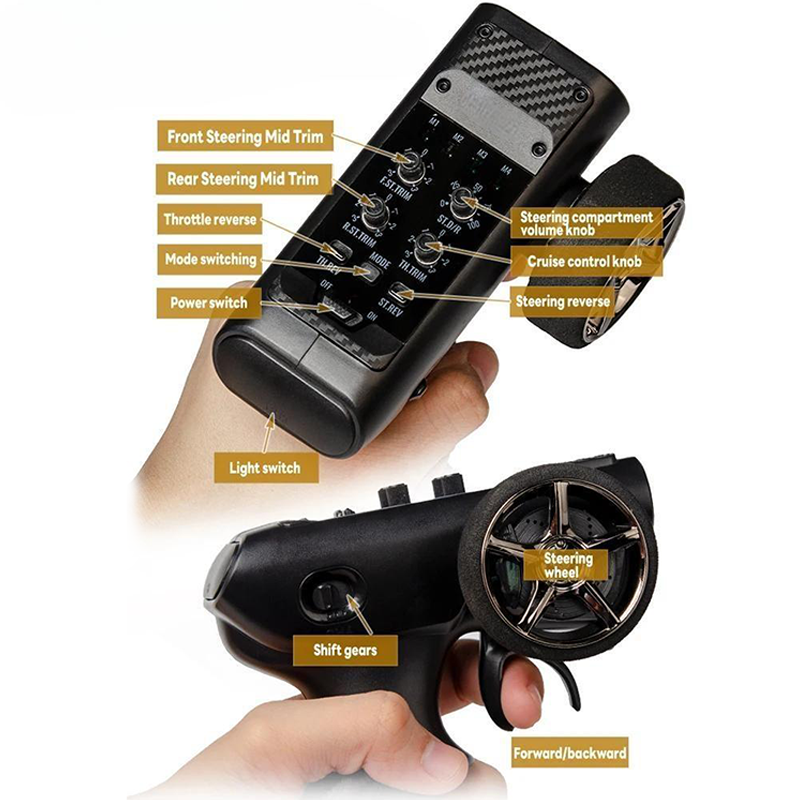

- 2.4GHz full-proportional synchronous remote control system.
Supports user-upgradable differentials; key components can be upgraded to metal materials. - Equipped with high-speed ball bearings throughout the vehicle. Features include metal bevel gears (plus integrated bevel gears), specialized climbing tires, a front-mounted simulated axle, a wide range of available upgrade parts, four-wheel steering capability (exclusive to the brushless version), four oil-filled shock absorbers, and a mid-mounted transmission with switchable gears (featuring metal gears).
Product Specifications
- ESC: 30A Integrated Brushed ESC / 30A Integrated Brushless ESC
- Motor: Type 130 16T Brushed Motor / Type 1212 16T Brushless Motor
- Servo: 9g 3-Wire Steering Servo (1kg Torque)
- Max Speed: 20 km/h (Brushed Version) / 25 km/h (Brushless Version)
- Frequency: 2.4 GHz
- Channels: 4-Channel
- Remote Control Distance: 60 meters
- Required Transmitter Batteries: 4 x 1.5V AA Batteries (Not Included)
- Vehicle Battery: 7.4V 360mAh XH-3P 2S Li-ion Battery
- Charging Time: Approx. 1 hour
- Run Time: Approx. 20 minutes (Brushless Version) / 25 minutes (Brushed Version)
- Material: PA (Nylon) + Metal + Electronic Components
- Vehicle Weight: Approx. 342g (Brushless Version) / 352g (Brushed Version) (Including Battery)
- High/Low Speed Gear Ratio: 58.6 / 9.3
- Reduction Gear: 30T
- Approach Angle / Departure Angle: >85°
- Breakover Angle: 133°

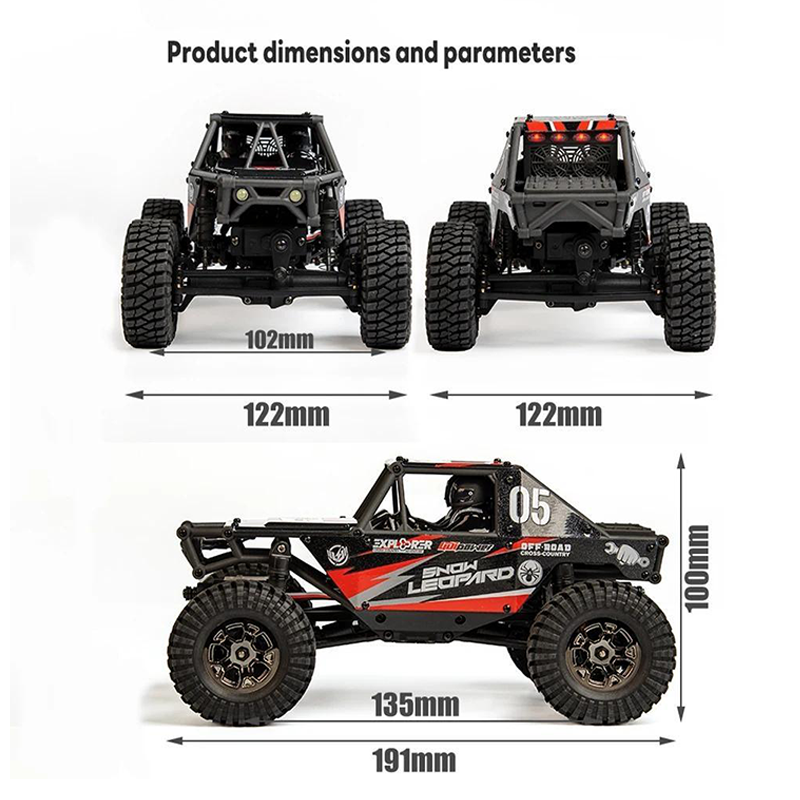

- Vehicle Dimensions: 190 x 120 x 99 mm
- Wheelbase: 117 mm
- Tire Diameter / Width: 55 mm / 20 mm
- Wheel Hub Diameter: 28.5 mm
- Axle Spacing: 135 mm
- Shock Absorbers: 47 mm (Full Length) / 37 mm (Compressed Length)
- Max Battery Compartment Dimensions: 50 x 30 mm
- Ground Clearance: 27 mm
- Hex Adapter Size: 7 mm

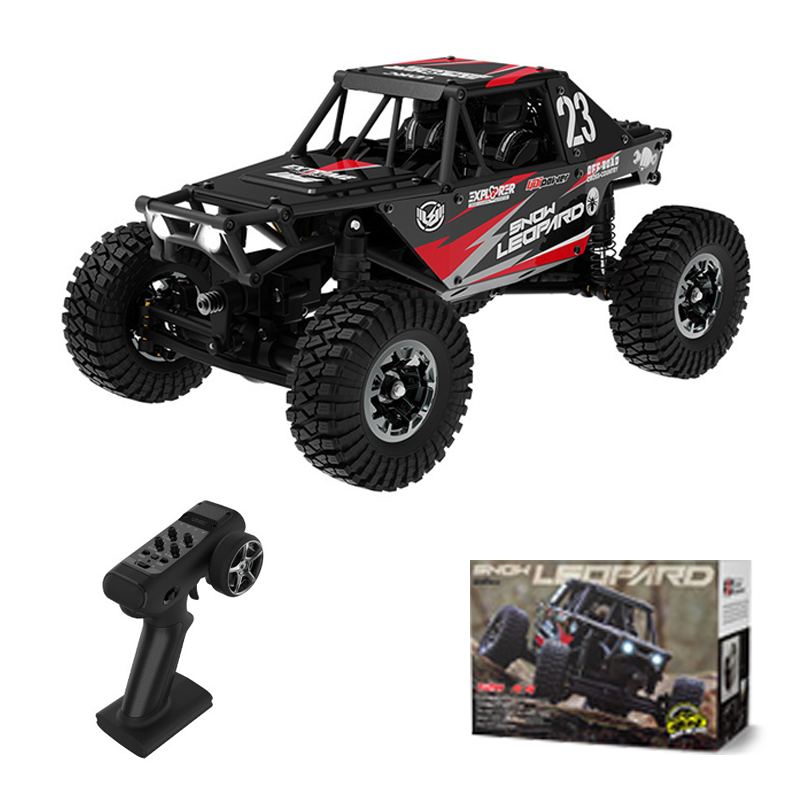

- Package Includes: 1x RC Vehicle, 1x Battery, 1x Remote Controller, 1x User Manual, 1x USB Charging Cable
